WNC122

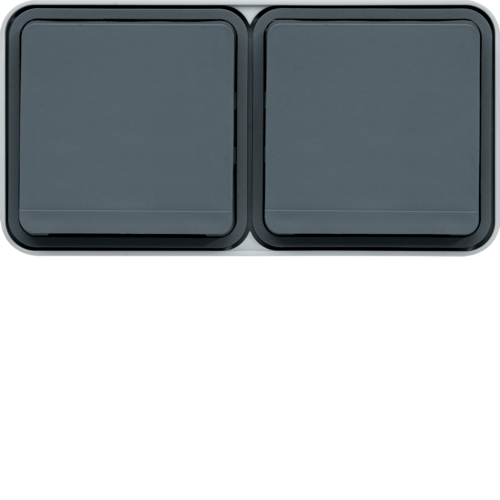

WNC122 cubyko 2x hor. sock 2P+E wall M grey

WNC122

cubyko 2x hor. sock 2P+E wall M grey

Art No.:WNC122
prt.
EAN No.:

3250617171229

Pack qty.:5 prt.
Technical Characteristics
Type of pole:2P+T
Fixing mode:Screwed
Centralized terminal connections:yes
With orientation lighting:no
Usable as a switch:no
Overvoltage protection:no
Rotated central insert:no
Indicator lamp:no
With or without indicator:without
With USB charging socket:no
Type of USB port:other
Nominal voltage:250 V
Frequency:50/60 Hz
Rated current:16 A
Number of modules for WA:4
Number of module locations:4
Interlockable:no
Special power supply:No special power supply
Colour:complete grey
Colour:grey (shades)
RAL colour:RAL 7011 - Iron grey
Material:Polypropylen
Surface appearance:satin finish
Surface protection:other
Type of surface treatment:mat varnish
Transparent:no
Depth of installed product:42,5 mm
Height of installed product:45 mm
Dimensions (LLxwwxhh):76x76x95
Width of installed product:90 mm
Fixing type:With screws
Mounting type:surface
Connection cross-sect. rigid cable:mini 2x1 mm² - maxi 2x2,5 mm²
Phase pickup:L1
Type of connection:Quickconnect
With miniature fuse:no
On/Off switch:no
With transparent product label holder:no
Approvals:NFC 61314
IK protection code against mecanical impacts:07
Protection index IP:IP55
  • without protective screen
Operating temperature:-15…30 °C
Storage/transport temperature:-50…50 °C
Insulated:yes
Range:cubyko
