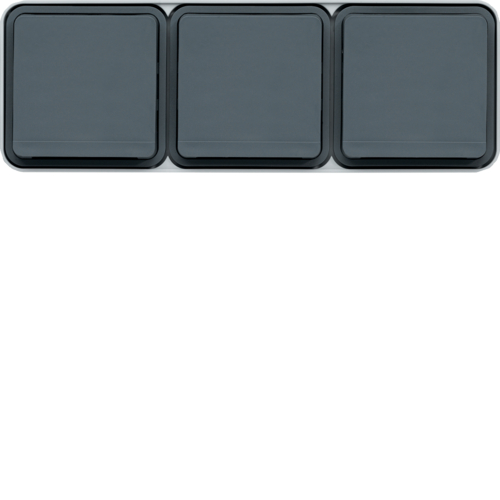

WNC123
All data is subject to errors and technical modifications.
Art No.: | WNC123 |
EAN No.: | 3250617171236 |
Pack qty.: | 1 prt. |
Type of pole: | 2P+T |
Fixing mode: | Screwed |
Centralized terminal connections: | yes |
With orientation lighting: | no |
Usable as a switch: | no |
Overvoltage protection: | no |
Rotated central insert: | no |
Indicator lamp: | no |
With or without indicator: | without |
With USB charging socket: | no |
Type of USB port: | other |
Nominal voltage: | 250 V |
Frequency: | 50/60 Hz |
Rated current: | 16 A |
Number of modules for WA: | 6 |
Number of module locations: | 6 |
Interlockable: | no |
Special power supply: | No special power supply |
Colour: | complete grey |
Colour: | grey (shades) |
RAL colour: | RAL 7011 - Iron grey |
Material: | Polypropylen |
Surface appearance: | satin finish |
Surface protection: | other |
Type of surface treatment: | mat varnish |
Transparent: | no |
Depth of installed product: | 42,5 mm |
Height of installed product: | 45 mm |
Dimensions (LLxwwxhh): | 76x76x97 |
Width of installed product: | 135 mm |
Fixing type: | With screws |
Mounting type: | surface |
Connection cross-sect. rigid cable: | mini 2x1 mm² - maxi 2x2,5 mm² |
Phase pickup: | L1 |
Type of connection: | Quickconnect |
With miniature fuse: | no |
On/Off switch: | no |
With transparent product label holder: | no |
Approvals: | NFC 61314 |
IK protection code against mecanical impacts: | 07 |
Protection index IP: | IP55 |
|
Operating temperature: | -15…30 °C |
Storage/transport temperature: | -50…50 °C |
Insulated: | yes |
Range: | cubyko |
